Galvanized H Beam (PV Solar Tracker)

Home > Galvanized H Beam (PV Solar Tracker)

Categories

Latest Products

Galvanized Steel H Beam

Galvanized Steel H Beam

W6*8 W8*10
A572GR50 A992GR50 Q355B/C/D
85microns

Send Inquiry
Product Introduction
Product NameSteel H Section Pile
ShapeHot Rolled or Welded
MaterialQ235/Q345/SS400/ST37/S235JR/S275JR/S355JR
StandardASTM,BS,DIN,JIS
SpecificationW6*7/8.5/9/12/15/20/25, W8*8/9/10/13/15/18/21
Lengthcustomized
Processingcut to length,punching,slotting,stamping,galvanizing
Payment TermTT,LC
Delivery Timeregular 15 days,decided by your order quantity
Packagecustomized
Basic Parameters of H Beams
Specification (inx1b/ft)Height (mm)Width (mm)Web thicnkness (mm)Flange thicnkness (mm)Theoetical weight (kg/m)
W6X71471003.34.210.5
W6X8.51481004.34.913
W6X91501004.35.513.5
W6X121531025.87.118.0
W6X151521525.86.622.5
W6X201571536.69.329.8
W6X251621548.111.637.1
W8X8198993.34.212.0
W8X91991003.84.713.5
W8X102001004.35.215.0
W8X132031025.86.519.3
W8X152061026.2822.5
W8X182071335.88.426.6
W8X212101346.410.231.3
Executive standard:ASTM A6 A6M  Steel Grade：ASTM A572/A992/GR50/GR60/GR65

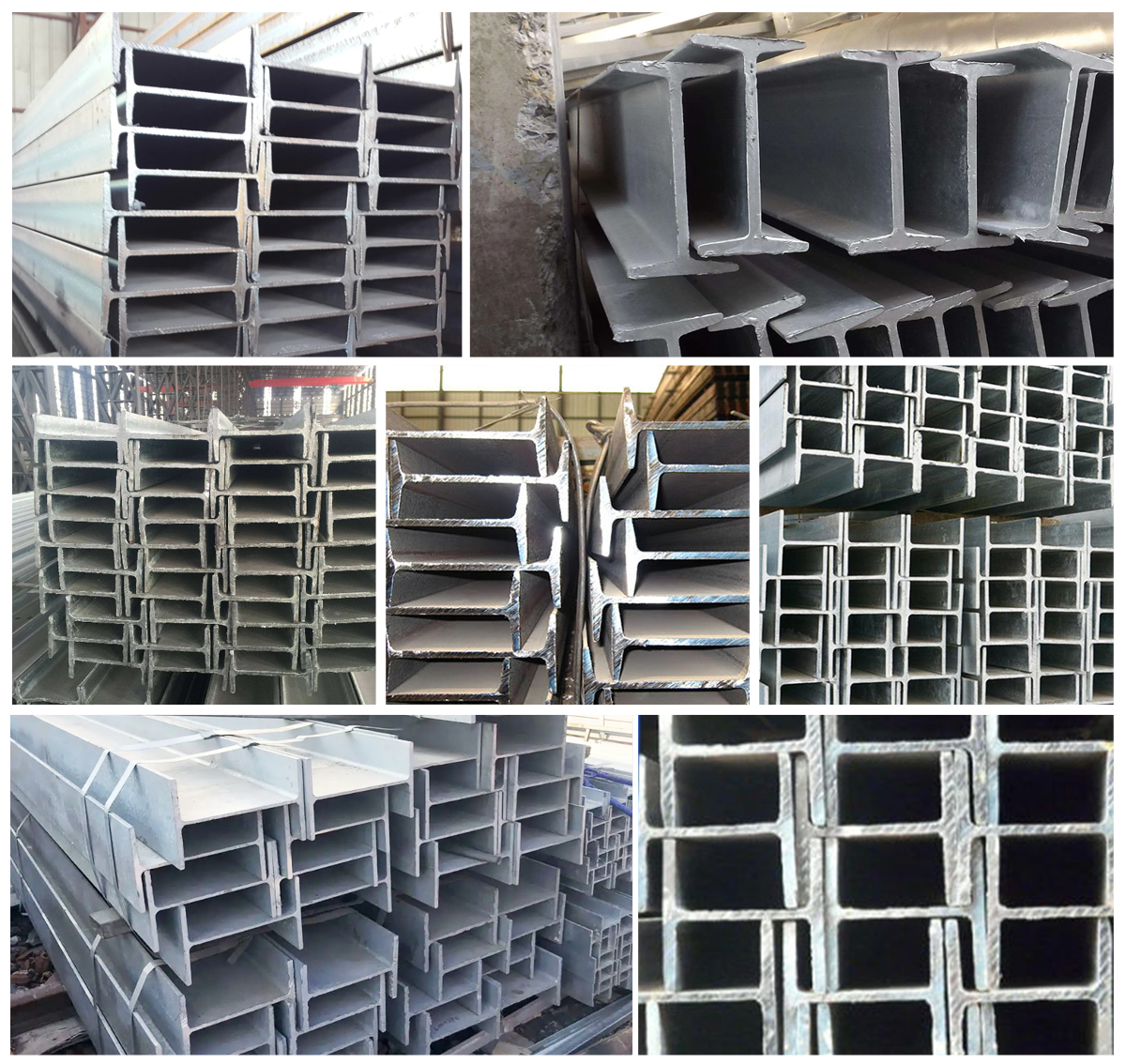

PRODUCT DISPLAY
